Battery Coating Machine Continuous and Intermittent Coating Machine
Battery Coating Machine is a three-roller transfer coating
equipment. It can carry out continuous and intermittent coating,
which is convenient to be applied to the equipment for surface
coating process of various substrates. Especially used in the
lithium ion battery industry. The equipment is designed to be
convenient for researchers to use while meeting the requirements of
coating accuracy and consistency, which is no different from
production. The drying effect is excellent, and it is an ideal
choice for the research and development and small tests of lithium
ion batteries, super capacitors, nickel batteries and other
secondary batteries.
Features
*Substrate tension control, stable belt, configuration of
correcting device;
*Hot air oven, double-sided airing on the top and bottom, good
drying effect;
*Three-roll transfer coating with a wide coating window;
*Comma scraper metering, with precision adjustment mechanism, to
achieve high coating accuracy;
*PLC control, touch screen operation, easy to use;
*Optional solvent recovery treatment device;
Installation environment requirements:
Machine head ambient temperature 25~30℃,Other:10~40℃；
Machine head relative humidity: positive RH ≤35%, negative RH
≤98%,others ≤98%；
Equipment function:
| Model | MR-SY300J Roll to Roll Coating Machine |
| Dimension | L 1800*W 1300*H 1200mm |
| Weight | About 1.2T |
| Power supply | 3PH 380V,50HZ, |
| Voltage fluctuation range | +8%～–8%； |
| start total power | 10KW |
| Compressed air | After drying, filtration and stabilivolt: outlet pressure＞5.0kg/cm2 |
| Suitable system | Lithium iron phosphate, lithium cobalt oxide, lithium manganese
oxide, graphite and silicon carbon system battery positive and
negative electrode coating process |
| Coating method | Continuous coating, interval coating |
| Oven section number | 1 section 1 meter oven |
| Substrate thickness | Aluminum foil:8～30um；Copper foil:8～30um |
| Roll surface design width | 330mm |
| Ensure coating width | ≤280mm |
| Coating | ±3um |
| Double-sided coating weight accuracy (mg/cm2) | Coating center value ±1.0% |
| Slurry viscosity | 2000~12000 (mPas) |
| Single-coated dry thickness range | 20-200μm |
| Solvent characteristics | Oily solvent NMP(s.g=1.033,b.p=204℃) |
| Watery solvent H2O/NMP(s.g=1.000,b.p=100℃) |
| Solid content | 20~85% |
| Coating dimension accuracy(mm) | L≤±1,W≤±0.5 |
| Positive and negative alignment accuracy(mm) | L≤±1,W≤±0.5 |
Product Display

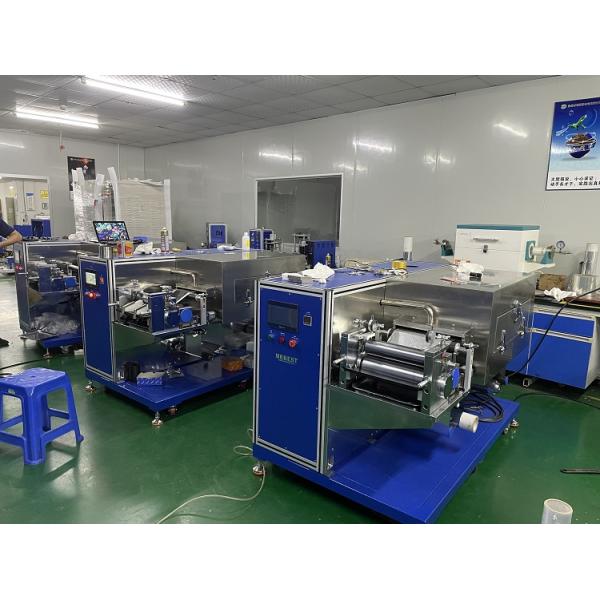

Factory Show
Shenzhen Meirui Zhida Technology Co., Ltd. is a Manufacturer
specializing in a Complete Set of Lithium Ion Battery Research
Equipment. MRBEST has been committed to providing customers with
comprehensive Battery Research and Development Equipment to meet
customers' new Lithium Battery Technology and New Needs in recent
years, such as Sodium Batteries, Solid-state Battery and
Semi-solid-state Battery Equipment, special process requirements
such as dry process, 4680 large cylindrical battery equipment
requirements etc. Create One-Stop Service for Battery Research
Equipment for customers and provide Professional Technical Guidance
and Support.
MRBEST related products include: Vacuum Mixers, Planetary Vacuum
Mixers, Lab Transfer Coating Machine, Automatic Film Coating
Machine, Electric Vertical Roller Machine, Pneumatic Die-cutting
Machines, Electric Sealing Machines, Vacuum Pre-sealing machine,
Secondary Sacuum Sealing Machine, Coin Cell battery Sealing
Machine, Battery Winding Machine, Pouch Cell Sealing Machine,
Ultrasonic Spot Welding Machine, Glove Box with Purification System
etc. MRBEST products have been sold at home and abroad. Our main
customer include: Universities, Research Institutes, Battery
Positive and Negative Material Companies, Battery Cell
Manufacturers, and New Energy EV Battery Manufacturers etc.
