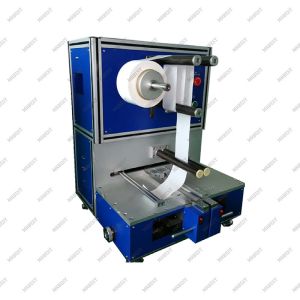

Semi-auto Lithium Ion Battery Electrode Stacking Machine
Model: MR-BDP200-B
MR-DPB200 is a semi-auto stacking machine which is used for
stacking pouch cell anode, cathode and separator by "Z'' shape to
make a pouch battery cell core. It is manually feeding material,
electrode position correction and laminating process are completed
automatically. It is high stacking efficiency, high accuracy of
stacking. It is perfect for high efficiency stacking requirement,
battery pilot production, factory trial-production, etc.
Main Features:
● Stacking qty can be pre-set.
● Stacking size is adjustable, maximum stacking size 150x150mm.
● Roll-type separator automatic servo constant tension control.
● Separator automatic photoelectric correction control.
● Manually feeding electrode, automatic position, mechanical arm
pick up electrode, automatically stacking.
● More compact size makes it ideal for battery lab.
Technical Specifications
| Model | Lithium Ion Battery Electrode Stacking Machine MR-DPB200 |
| Working voltage | AC110V/220V optional |
| Stacking size | Min 40x40mm, Max 150x150mm, tab size is not covered. Customized
size is available |
| Stacking thickness | Max 30mm |
| Separator roll diameter | φ250mm |
| Stacking layer | Max 500 layers settable |
| Power consumption | 1KW |
| Air pressure | 0.5~0.7Mpa |
| Dimension | L1000 * W780 * H1050mm |
| Weight | 350kg |
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of
Lithium Battery Equipment, and we only focus on one thing that is
make professional Lithium ion Battery Equipment for customer around
the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and
support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China,
support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are
professional on Lithium Battery Equipment, the chief engineer team
have
more than 20 years experience on lithium battery area, so we can
easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before
consult order, also after-sale service, one by one .
