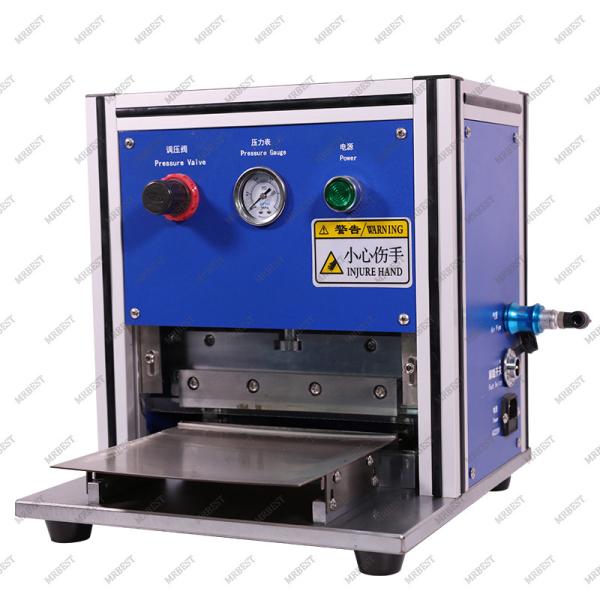

200mm Pneumatic Battery Edge Cutting Machine For Lab Pouch Cell
Model: MR-QP200
This battery edge cutting machine is mainly used for lithium
polymer battery aluminum-plastic film trimming molding, and it can
also be used for cutting off other soft materials.
Features:
1. It uses the silver linear slide group for guidance, high
precision to ensure that the upper and lower cutting between the
zero gap and long service life;
2. It uses plexiglass protective cover to prevent cut hand and cut
the battery;
3. Cutting knife from top to bottom use of high-speed steel, with
sharp blade;
4. Built-in pressure gauge, from which you can observe and
accurately control the size of the trimming pressure
5. Cylinder control cutting edge of the battery edge cutting, easy
to form automation, trimming width can be adjusted;
6. Air pressure and speed can be set to adjusted;
7. A product positioning tray, adjustable from top to bottom to
facilitate the positioning of the battery;
8. Using foot switch, reliable, convenient and fast;
Specifications
| Model | Battery Edge Cutting Machine MR-QP200 |
| Working Voltage | 110 - 240VAC, single phase |
| Compress Air Pressure Requirement | 0.5 - 0.7 MPa (Each stroke will consume 0.09L air ) |
| Size Info (Trimming Width/Length) | Trimming Width: 2~8mm adjustable Max. Trimming Length: 200mm High-quality tooling steel blades. |
| Stroke Frequency | ~10 seconds per trial |
| Cutter life | 1 million/grinding |
| Speed | 600 times / hour |
| Power | 100W |
| How to use this Tool Suite | When the pouch cell is fabricated, an uneven edging excess is
expected. In order to make a neat and tidy cell with smooth edge
just like the commercial pouch batteries, please follow the steps
in below: Step 1. Use the MR-QP200 trimming machine to cut off the excess area of the casing edge, only leave the size
appropriate for the edge folding and ironing Step 2. Use the MR-TP200 ironing machine to smooth the edge prior to the folding Step 3. Use the MR-ZP200 folding machine to partially fold the edge Step 4. Use the MR-TP200 ironing machine to smooth the folded section
again and then iron the longer section against the sides of the
case. Now a neat and tidy cell is finished. |
| Net Weight | 35kg |
| Product Dimensions | L320x W180x H340mm |
| Compliance | CE Certificate |
| Warranty | One Year limited warranty with lifetime support |
Standard Packing List
| Item | Qty |
| Battery edge cutter machine | 1 set |
| Power line (according to your requirements) | 1 pcs |
| Foot pedal | 1 pcs |
| socket head wrench | 1 set |
| Operating manual (English) | 1 book |
