CR2016 Case with Two Sides Kapton Windows

EQ-CR2016-Kapton-2s is special CR-2016 coin cell casing with two sides of 10mm Kapton windows to achieve a full penetration of in-situ neutron diffraction This design creates the possiblity to analysis of battery material phase variations during charging and discharging.

* 5 set of CR2016 casing per package

* Kapton windows (10mm dia.) in both sides of CR2016 battery casing to ensure a full X-Ray beam penetration.

* PP (Polypropylene) sealing O-ring.

* Compatible with MRBEST MR-SF120 crimper

Specifications
Dimensions (Dia x Height)	20mm x 1.6mm
Kapton window thickness	0.18mm
Coating	The positive side of the casing is coated with aluminum
Al coating thickness	< 0.01mm
Weight	0.25 Oz (7 grams)

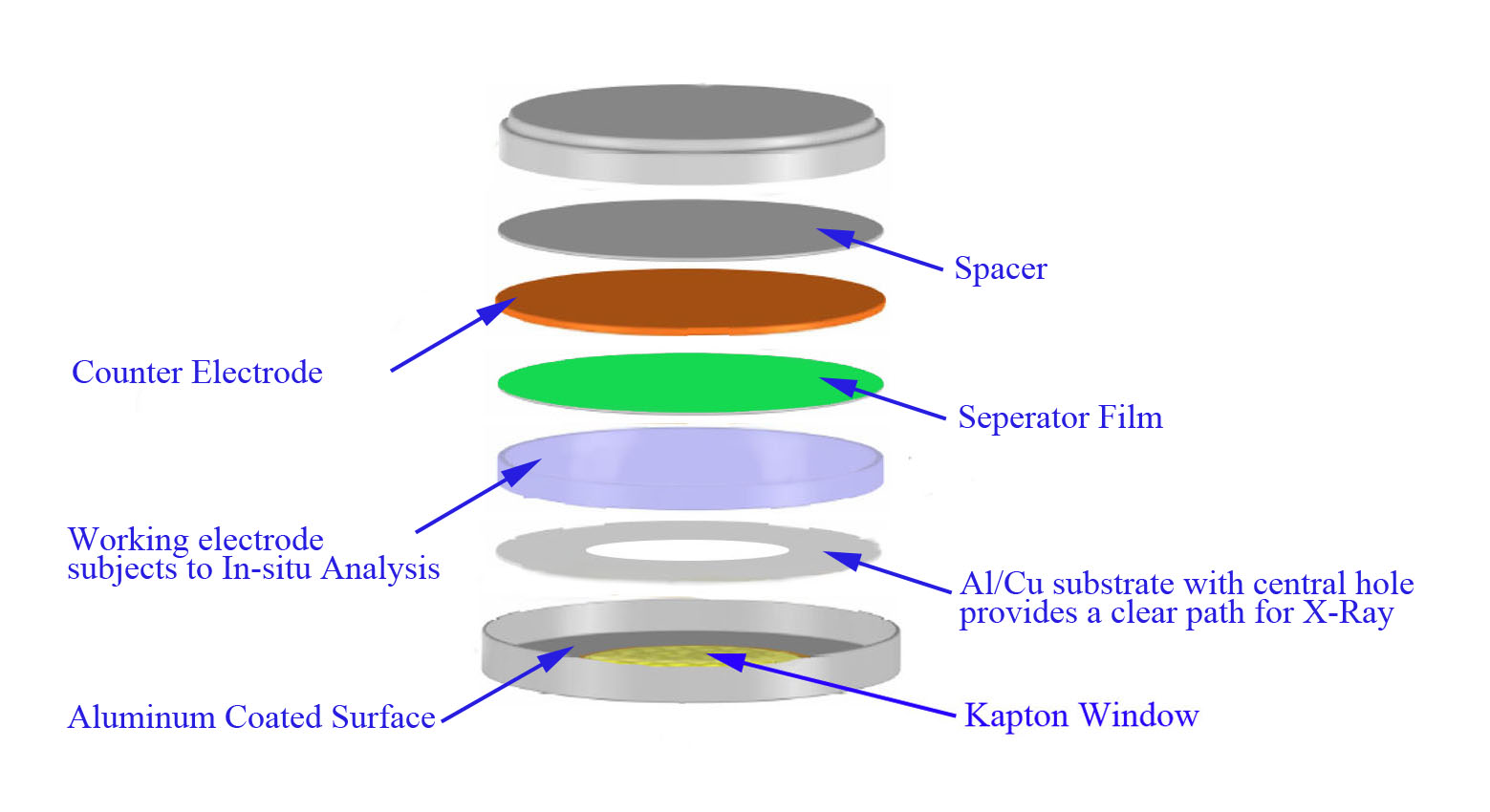

Cell Assembling Structure
Application note	In order to reduce X-ray photons loss and get high resolution of X-ray signal for battery, please use carbon-based substrate as current collector instead of Al or Cu foil. You may use lab press and dry pressing die below to prepare an electrode pellet instead of using electrode coated Al or Cu foil.
